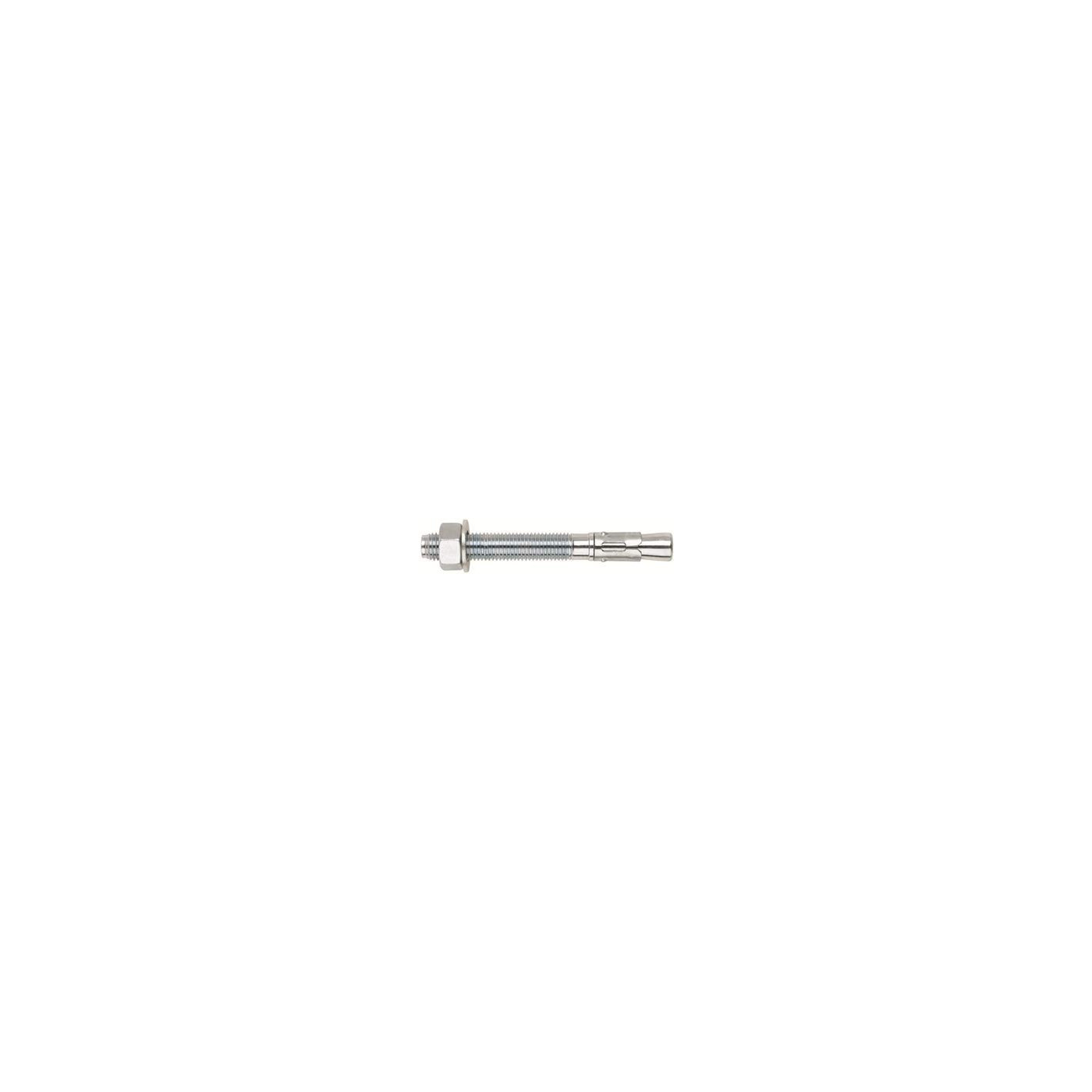

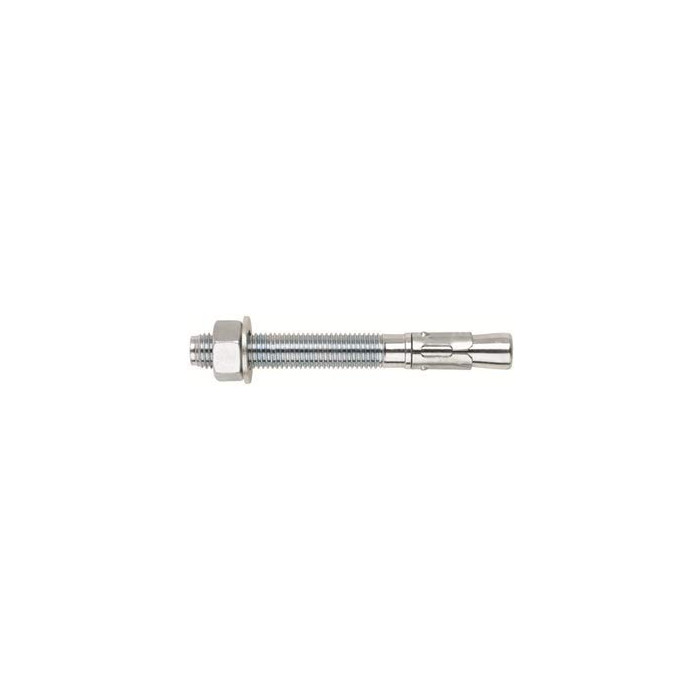

ICFS Through Bolt Anchor TBA 10X120MM 10 x 120 mm (Pack Of 50)

Be the first to review this product

₹2100

IN STOCK SKU#: TBA10120

Regular Price : ₹3200

Add to Wish List

Add to Compare

E-mail

Size Of :

10 x 75 mm 10 x 90 mm 10 x 120 mm 10 x 150 mm

12 x 80 mm 12 x 100 mm 12 x 120 mm 12 x 150 mm 12 x 250 mm

16 x 100 mm 16 x 145 mm 16 x 250 mm

20 x 170 mm 20 x 220 mm

Pack Of : 10 x 120 mm

10 20 25 50 100

Quick and easy to install.
For use in cracked and non-cracked concrete
For medium-high loads
Previous installation, or at the drilling of the material to be fixed
Wide range of lengths and diameters available: installation flexibility

Brand Name	ICFS
Colour	Silver
Included Components	50 Pieces of ICFS Wedge Anchor Bolt 10 x 120 mm with Nut and Washer
Material Type	Mild Steel
Number of Items	50
Part Number	ICFSTBA10120
Size	Standard

The Wedge Anchor also known as Sleeve Anchor or Through Bolt Anchor can be installed through the work piece. This saves considerable time in installation avoiding alignment errors and provides an exceptionally efficient retention method for fixing to concrete and stone. Its firm fixing action permits repeated removal and replacement of the nut without weakening the anchorage. As the bolt is driven into the fixing hole the clip is compressed ensuring a tight interference fit. When torque is then applied to the nut the tapered section of the bolt retracts through the clip which expands to create a rapid and permanent grip. As for the internal threaded version TBA-I, it can be installed in normal drill holes without a setting tool.

Features
